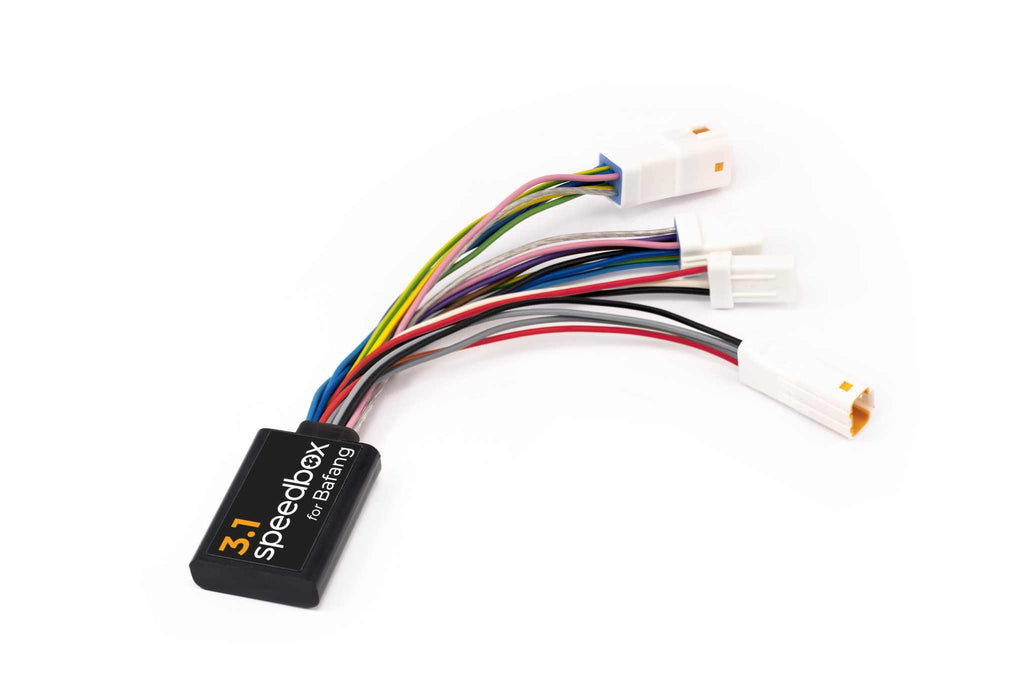

SpeedBox 3.1 module for Bafang electric bikes with 4-pin connector and multiple colored wires

SpeedBox 3.1 module for Bafang e-bike motor tuning with 4-pin connector in white and yellow packaging

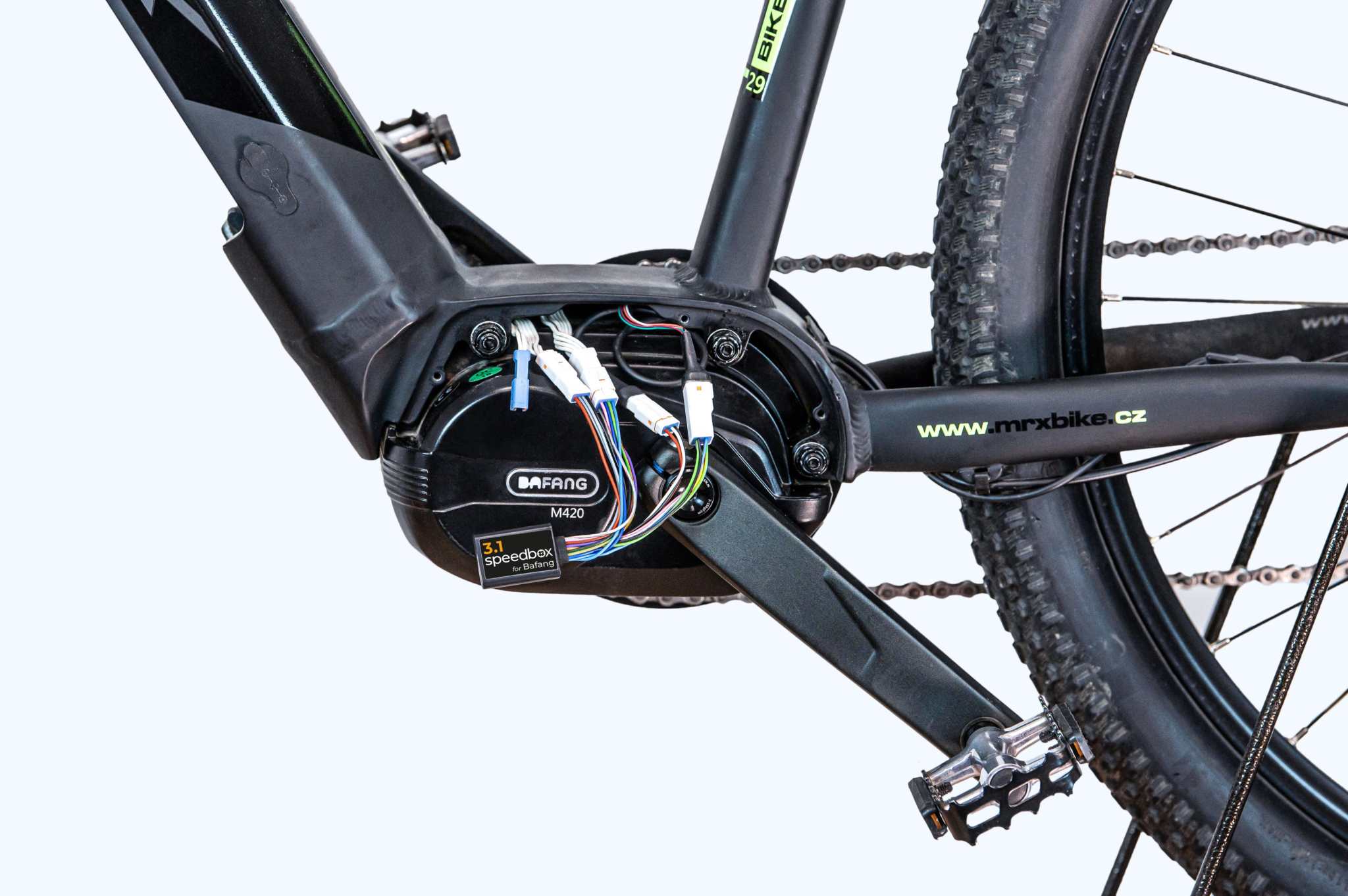

SpeedBox 3.1 module installed on Bafang M420 electric bike motor with 4-pin connector for speed limit removal up to 35 km/h.

SpeedBox 3.1 module for Bafang Max Drive M300 M400 M420 e-bike with 4-pin connector and speed limit removal.

Move your mouse over to zoom Click on image to zoom

SpeedBox 3.1 for Bafang (4-pin connector)

Name: SpeedBox 3.1 pour Bafang (connecteur 4 broches)
Brand: Scooterama
SKU: SB31_BAF
Price: 170.00 CHF
Availability: InStock

SKU: SB31_BAF

0 opinion

Moteur compatible:

Bafang

Perte éventuel de garantie moteur, pas de retour possible si emballage ouvert.

Price list:

170.00

Taxes included Postage calculated at checkout

Stock:

In stock

Quantity:

SpeedBox 3.1 is a third-generation unbridling module designed for electric bikes fitted with Bafang Max Drive M300, M400 or M420 motors with 4-pin connectors. It removes the 25 km/h assistance limit, offering assistance up to higher speeds (around 35 km/h). Unlike the Bluetooth versions, this classic version does not require a mobile app, and offers activation/deactivation via the bike's controls.

Highlights

Remove assistance limit: Eliminates the 25 km/h restriction.
Activation/deactivation via bike: Use the bike's existing buttons to control the module.
Actual data display: Current speed, maximum speed, average speed, mileage and range displayed correctly.
Simple installation: original connectors for plug & play installation without modifications.
No application required: Works independently of a mobile application.

Technical specifications

Specification	Detail
Type of use	Tuning e-bike Bafang Max Drive M300 / M400 / M420 (private use recommended)
Engine compatibility	Bafang Max Drive M300 / M400 / M420 with 4-pin connector
Screen compatibility	System-compatible Bafang screens
Activation/Deactivation	Via bike buttons (e.g. LIGHT button or button sequence)
Activation indication	99 km/h display briefly
Indication of deactivation	Display 25 km/h briefly
Recommended max. speed	Unlimited (≈ 35 km/h recommended)
Actual speed display	Yes
Correct distance	Yes, after the countdown at the end of the journey
Installation	Plug & play with original connectors
Practical notes	Do not switch on/off while riding; leave the bike powered up to 0.0 km/h before switching off.
Incompatibilities	Not compatible with standard sensor (not 4-pin), ABS systems

Neither the dealer nor the manufacturer can be held responsible for motor malfunctions after the product has been installed.
Not permitted within the scope of the Swiss Federal Road Traffic Act (SVG)! Liability, warranty and guarantee on the part of the dealer/manufacturer excluded.
Please note that the use of bikes fitted with the unbolt kit may contravene current legislation in some countries. The manufacturer will not be held responsible for any damage caused by the use of SpeedBox products. Electric bicycles equipped with SpeedBox products may not be used on roads, cycle paths or in public spaces. Electric bicycles equipped with SpeedBox products may only be used on private property and under your own responsibility. By using SpeedBox products, you take the risk of losing the warranty on the electric bike.
We also recommend the use of other safety and protective equipment to avoid injury while riding.
