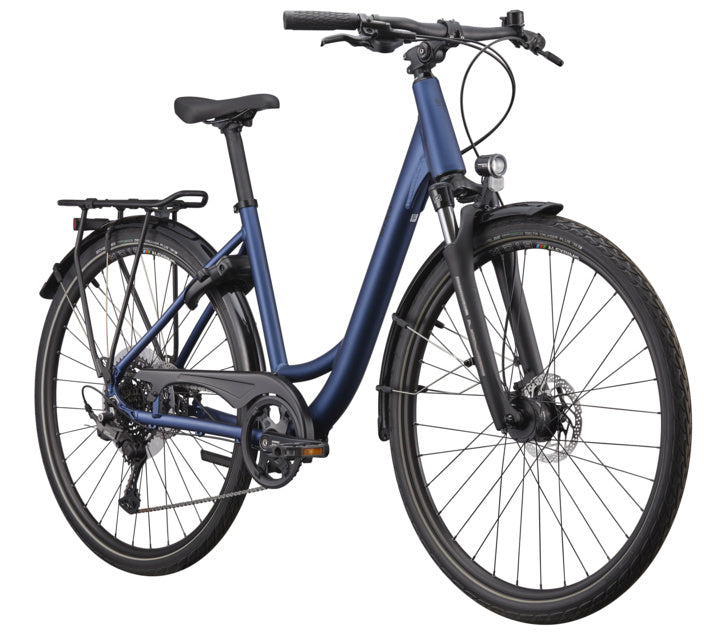

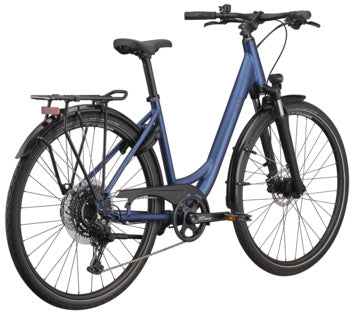

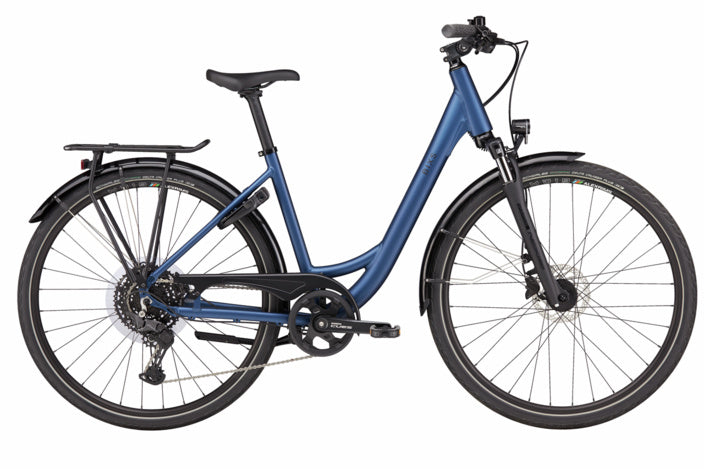

Bixs CAMPUS 3 DI

Name: Bixs CAMPUS 3 DI
Brand: intercycles
SKU: 101-506-4089-725-M
Price: 999 CHF
Availability: OutOfStock

SKU: 101-506-4089-725-M

We do not deliver bikes to homes. If you are interested in a model, please contact us directly using the form below.

Color: dark blue

Size: M

Variant

Price list:

999.00

Taxes included Postage calculated at checkout

Available stock, products in stock with the supplier are available within 2 to 4 working days.

Loading locations...

General description
The Campus 3 Di is a versatile urban bike, ideal for commuting and touring. With its low step-through frame, it offers optimum comfort and accessibility, perfect for both city riding and weekend getaways.

Key features

Sturdy, comfortable step-through aluminium frame
Suntour NEX spring fork, 63 mm travel
Shimano CUES 10-speed transmission (40T chainring, 11-48T cassette)
Shimano hydraulic disc brakes, 160 mm discs
Wheels with Schwalbe Delta Cruiser Plus 700×47 C tires, puncture protection
Dynamo hub with 50 lux front light and LED rear light with standlight function
Integrated accessories: mudguard, Racktime luggage rack, kickstand, frame lock

User benefits

Comfort and accessibility thanks to low frame
Fully equipped for city life and daily commuting
Rugged and versatile for roads and light trails
Possibility of adding a Bafang BBS motor to convert the bike into an electric version

Utilization class: 2
Fork mounting height: 477 mm
Fork offset: 42 mm
Bottom bracket height: 300 mm
Spacer: 3x10 mm
Chain line: 50 mm
Max. seatpost insertion depth: S: 250 mm, M: 250 mm, L: 250 mm
Max. chainring length, chainring size: 40T
Tire clearance: 47 mm
Seatpost diameter: 31.6 mm
Seatpost clamp: 34.9 mm
Rear axle: Shimano Quick Release 170 mm
Chainstay length: 465 mm
Crank length: 170 mm
Handlebar width: 640 mm
Handlebar height: 25 mm
Top tube length: 555 mm
Reach: 350 mm
Seat tube length: 440 mm
Seat angle: 73
Stack: 669 mm
Head tube length: 180 mm
Head tube angle: 70
Bottom bracket drop: 63 mm
Stem length: 90 mm
Stem angle: 10 - 50
Handles : VELO VLG-1777D2
Target audience: Unisex
Color: Dark blue matte
Application: City
Size: S
Frame size: S / M / L
Product range: CAMPUS
Net weight: 17.9 kg
Wheel size: 700C
Braking system: Post Mount 160 mm
Brakes: Shimano BL-MT201, BR-MT200 2-piston
Wheelbase: 1076 cm
Front tire: Schwalbe Delta Cruiser Plus, Puncture Guard, 700x47C
Rear tire: Schwalbe Delta Cruiser Plus, Puncture Guard, 700x47C
Headlights: Trelock LS-383 VEO 50 Lux, automatic position light
Catalog design: Metallic Dark Blue
Frame material: Aluminum
Brand: BIXS
Age / Body size: 149-163 cm
Bike category: Unisex
Bike type: City / Trekking
Front wheel travel: 63 mm
Total weight allowance: 130 kg
Number of gears: 1x10
Chain: Shimano CUES CN-LG500
Telescopic fork: Suntour SF15-NEX Coil, 63 mm, 5x100 mm
Frame: CAMPUS Premium Alloy Hardtail
Frame geometry (WL/BX/MU): Deep instep
Bottom bracket axle: Shimano BB-UN300 BSA 68 mm
Cassette: Shimano CUES CS-LG300-10, 11-48T
Crankset: Shimano CUES FC-U4000-1, 40T
Dynamo: Shimano DH-3D37 Hub Dynamo, 6V, 3.0W
Mudguard: BIXS EX-CP55-AB, 55 mm wide
Saddle: BIXS VL-4479
Seatpost: BIXS Seatpost, ø31.6 mm, 350 mm
Shifter: Shimano CUES SL-U6000-10R
Stem: BIXS Stem, adjustable angle, 31.8 mm clamp
Front hub: Shimano DH-3D37-QR Dynamo Hub, 6V, 3W, 32 holes
Handlebars: BIXS Trekking Bar, 31.8 mm clamp
Pedal: Wellgo LU-C097
Luggage rack: Racktime Shine Evo, BIXS custom, Snap-it system
Rear derailleur: Shimano CUES RD-U6000, 10-speed
Rear hub: Shimano FH-QC300-HM, 32-hole, Hyperglide Freehub
Rear light: Busch & Müller LED integrated on luggage rack, Standlight automatic
Headset: FSA No. 57E, 1 1/8" / 1.5
Brake discs: Shimano SM-RT30, Center Lock, 160/160 mm
