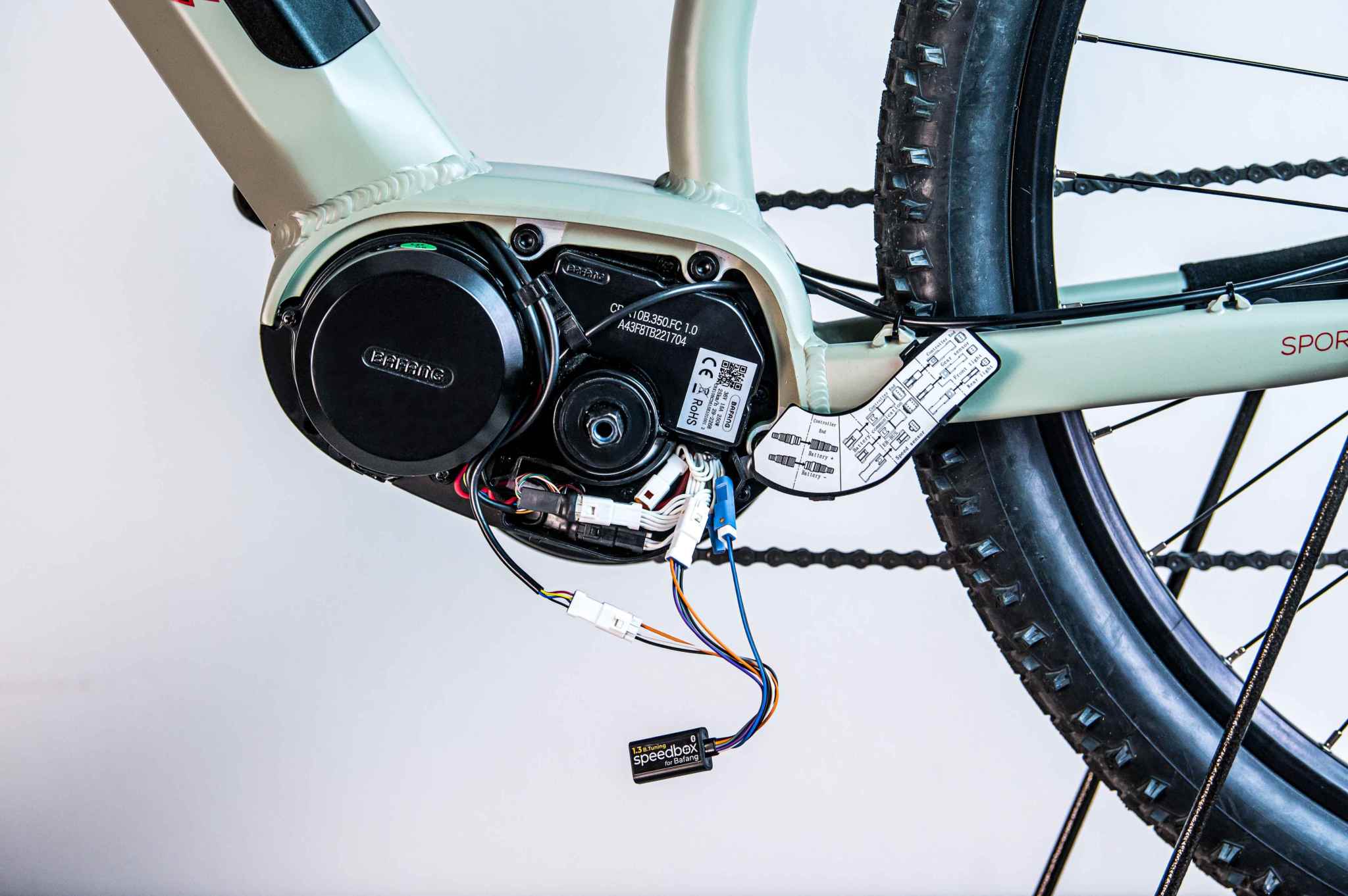

Module SpeedBox 1.3 B.Tuning pour vélos électriques Bafang avec connecteur 4 broches installé sur moteur Bafang Max Drive M300, M400, M420.

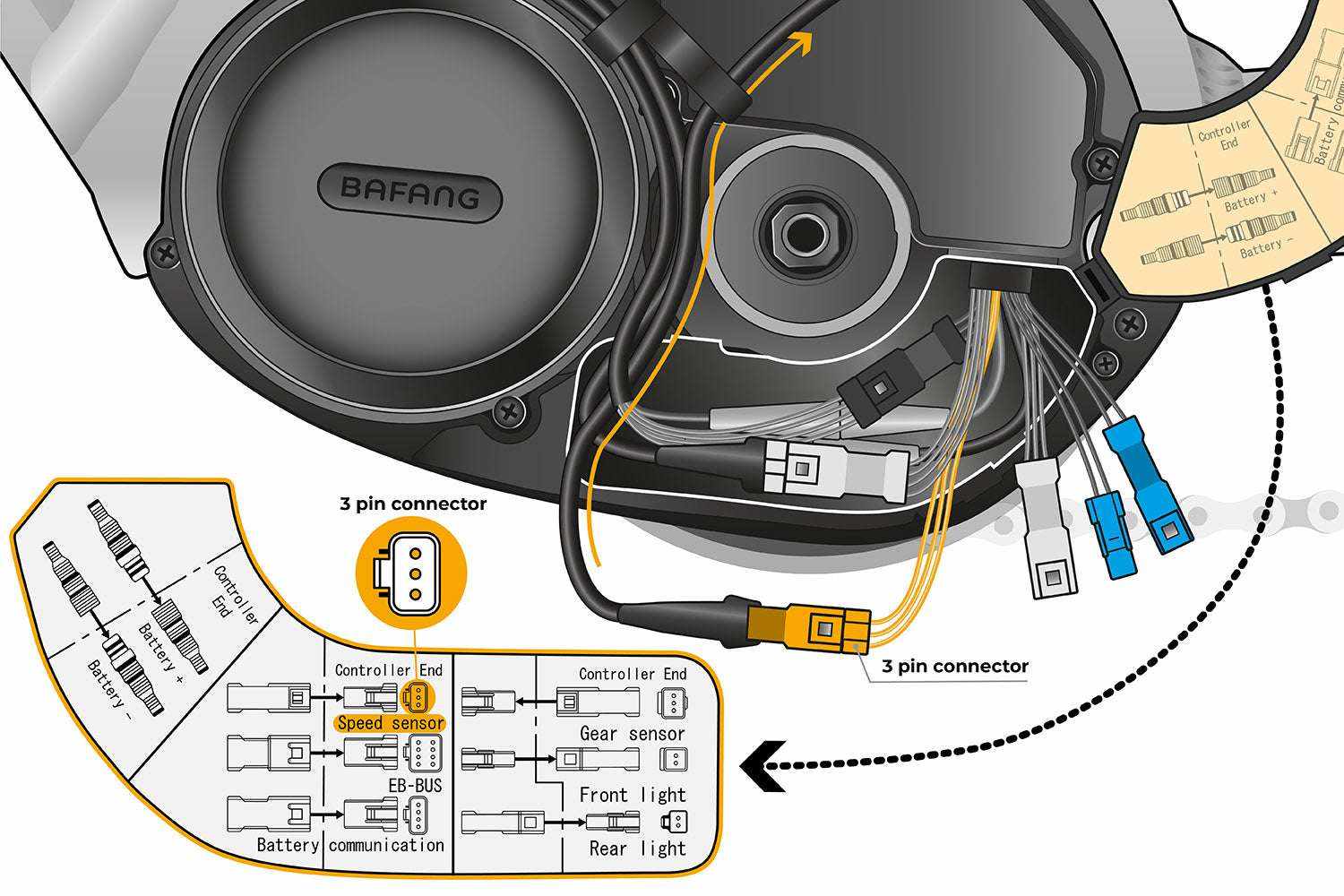

Schéma de câblage Tuning pour Bafang connecteur 4 broches SpeedBox 1.3 B.Tuning module pour moteurs Bafang Max Drive M300 M400 M420

Move your mouse over to zoom Click on image to zoom

SpeedBox 1.3 B.Tuning for Bafang (4-pin connector)

Name: SpeedBox 1.3 B.Tuning pour Bafang (connecteur 4 broches)
Brand: Scooterama
SKU: SB13BT_BAF
Price: 270.00 CHF
Availability: InStock

SKU: SB13BT_BAF

0 opinion

Moteur compatible:

Bafang

Perte éventuel de garantie moteur, pas de retour possible si emballage ouvert.

Price list:

270.00

Taxes included Postage calculated at checkout

Stock:

In stock

Quantity:

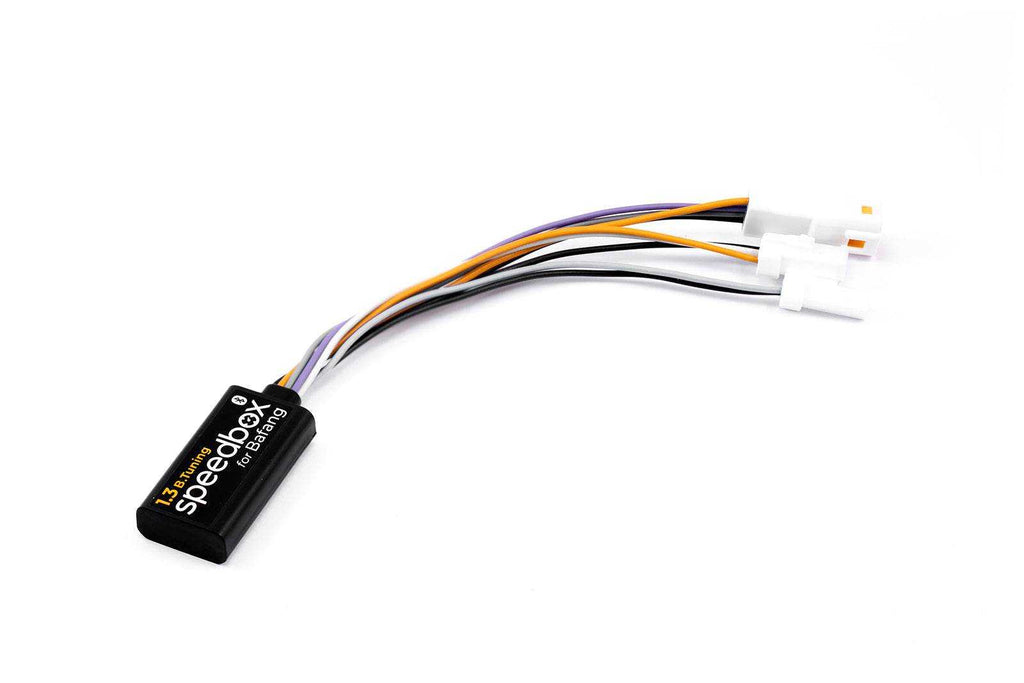

SpeedBox 1.3 B.Tuning for Bafang (4-pin connector) is a tuning module for electric bikes fitted with Bafang Max Drive M300, M400 and M420 motors with 4-pin connector. It removes the 25 km/h assistance limit, offering smooth assistance up to 50 km/h.

The module is activated manually via the LIGHT button on the control console. When the SpeedBox is activated, the headlight symbol is briefly displayed; simply press again to deactivate. Installation is simple, thanks to color-coded, solderless connectors.

Highlights

Manual activation via LIGHT button.
Simple installation: color-coded connectors, Plug & Play.
Compatibility: Bafang Max Drive M300, M400 and M420 motors (4-pin connector).
Correct display: actual speed up to 23 km/h.
Reliability: robust module designed for intensive use.

Technical specifications

Specification	Detail
Type of use	Tuning e-bike Bafang (off-road legal use)
Engine compatibility	Bafang Max Drive M300, M400, M420 with 4-pin connector
Activation	Manual via LIGHT button
Max. speed setting	Up to 50 km/h
Display	Actual speed up to 23 km/h, then fixed value
Installation	Plug & Play with color-coded connectors
Recommendation	Ride ~10 km before first activation on new bike
Warnings	Use on public roads may be illegal; may void warranty

Neither the dealer nor the manufacturer can be held responsible for motor malfunctions after the product has been installed.
Not permitted within the scope of the Swiss Federal Road Traffic Act (SVG)! Liability, warranty and guarantee on the part of the dealer/manufacturer excluded.
Please note that the use of bikes fitted with the unbolt kit may contravene current legislation in some countries. The manufacturer will not be held responsible for any damage caused by the use of SpeedBox products. Electric bicycles equipped with SpeedBox products may not be used on roads, cycle paths or in public spaces. Electric bicycles equipped with SpeedBox products may only be used on private property and under your own responsibility. By using SpeedBox products, you take the risk of losing the warranty on the electric bike.
We also recommend the use of other safety and protective equipment to avoid injury while riding.
