SpeedBox 1.2 for Shimano is a tuning module dedicated to Shimano motors (E8000, E7000, E6100, E5000). It removes the classic assistance limit, to fully exploit the motor's power. The module displays actual speeds up to 23 km/h, then masks any limits (unlimited speed). It has no Bluetooth connectivity or dedicated application.
Activation or deactivation is performed via the lights function (LIGHT): when the lights are off, the module is activated. It is also possible to connect a wire to the "-" terminal to keep it permanently active, whatever the state of the lights.

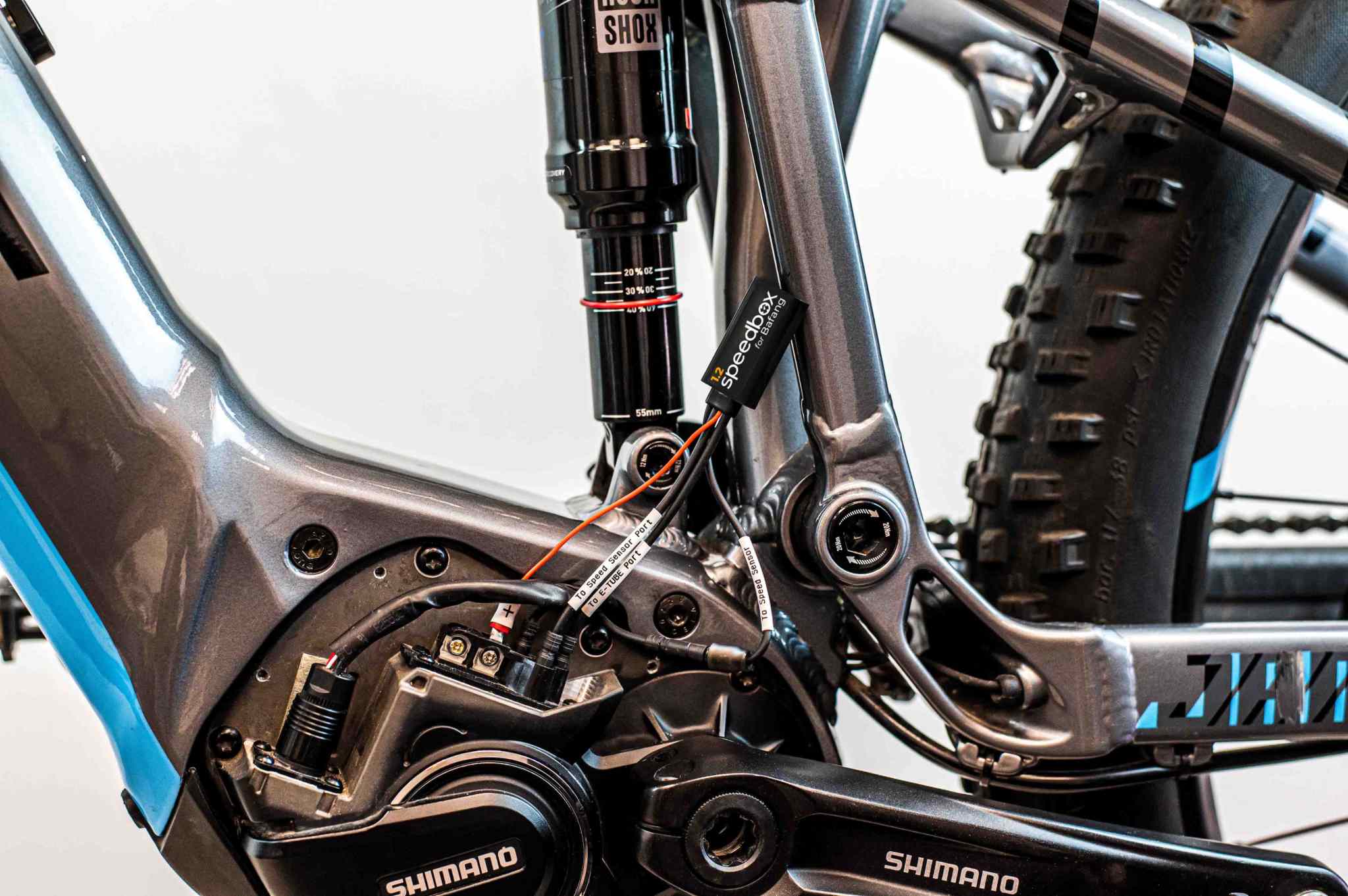

Installation is simplified thanks to original, solderless connectors, with instructions and videos provided. We recommend a 10 km ride before activating tuning on a new bike.

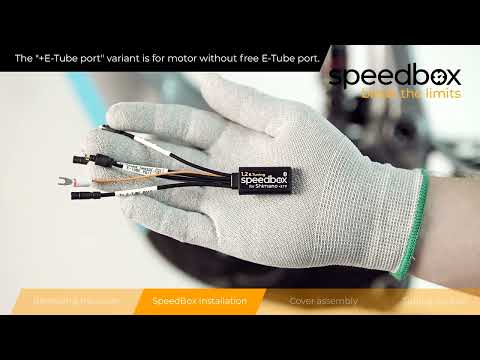

A "+ E-Tube port" version is available for engines where all E-Tube ports are already in use (e.g. bikes with Di2, integrated satellite systems, or E5000 engines).
Highlights
-
Activation via light button (LIGHT) - or always-on mode with wire connected to "-".
-
Display of correct speeds up to 23 km/h
-
Complete elimination of assistance limitation
-
Plug & play operation with original connectors
-
Alternative version "+ E-Tube port" for motors without free port
-
No Bluetooth / no application
Technical specifications
Specification |
Detail |
Type of use |
Shimano e-bike tuning (not for legal public use) |
Engine compatibility |
Shimano E8000, E7000, E6100, E5000 |
Not compatible |
Other SpeedBox tuning systems or Bluetooth modules |
Activation |
Via light button (LIGHT) / or permanent wire (terminal "-") |
Max. speed setting |
Unlimited (once activated) |
Speed display |
Displays actual speed up to 23 km/h |
Connectivity |
No Bluetooth / app |
Installation |
Plug & play via original connectors |
Alternative variant |
+ E-Tube port" version for engines with all ports used |
Recommendation |
Drive ~10 km before first activation |
Warnings |
Use on public roads may be illegal; may void warranty |
