Activation: By pressing the WALK/ WALK +/ + - + - button.
Maximum speed: unlimited
Display on screen: actual speed

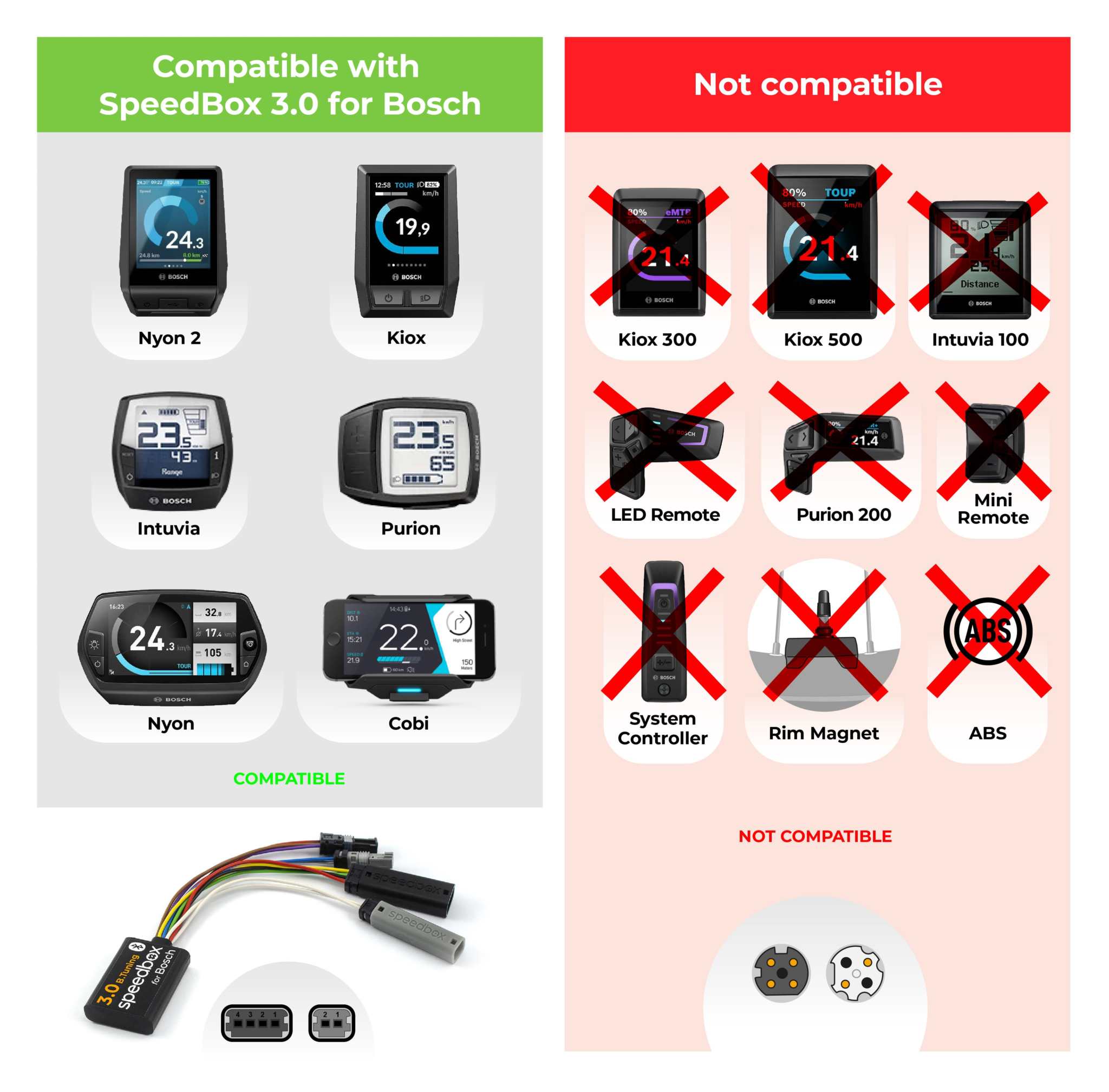

Compatible with the screens:
Compatible with: all engines (including fourth generation engines):
Active Line Plus
Performance Line CX Line
Performance Line Speed
Not compatible with:
2022 Bosch Smart System
The third generation smart chip with the ability to set the speed limit of your electric bike.

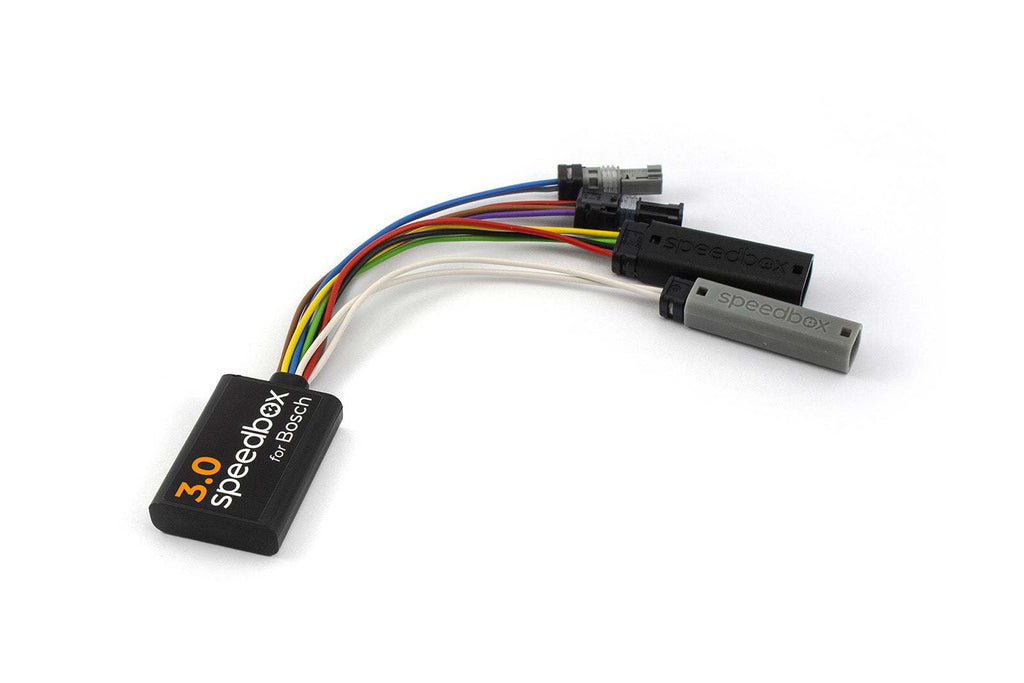

The SpeedBox 3.0 kit allows you to select and set the speed limit as you wish. Once the SpeedBox is installed, actual data such as current speed, maximum speed, average speed, mileage and range are displayed on the screen.
How does the SpeedBox 3.0 work?
The SpeedBox 3.0 is activated on the control box of the electric bike. After pressing the WALK, the speed of 9.9 km/h (6,1 mph) will be displayed briefly on the screen. From this moment on you can ride at any speed - 40 km/h (25 mph), 50 km/h (30 mph), even more than 60 km/h (37 mph).
To deactivate the SpeedBox, press the WALK button again. The speed limit will be activated again. The electric bicycle works in the same way as before the installation of the chip.
We have also thought about the bikes that do not have the usual control box and where there is no WALK button. In these cases, simply press the arrow buttons in the following order: + - + - and the SpeedBox becomes active. In the same way you will deactivate the SpeedBox.
You can set the maximum speed by changing the mode: Turbo - EMTB - Tour - Eco - Tour - EMTB - Turbo. Then the current speed limit will be shown on the display. To change the maximum speed, briefly press the WALK button or turn the rear wheel 360°. Each turn of the wheel changes the maximum speed.
The displayed value of 1.5 km/h corresponds to the 15 km/h limit, 2.0 corresponds to the 20 km/h limit, 2.5 corresponds to 25 km/h, 3.0 corresponds to 30 km/h, 9.9 corresponds to 99 km/h, etc. The last limit displayed will be saved after 5 seconds of inactivity.
After you have completed the ride, you will see the time (in minutes) that you must leave the bike on. Leave the bike on until 0.0 km/h appears on the display. Just after that you can turn off the bike.
We use the original connectors for the SpeedBoxes. Thanks to this, the installation of the chip is very simple and you will easily succeed. We have also prepared detailed instructions and videos, so that you can install the unboxing kit yourself. Uninstalling the unboxing kit is as easy as installing it. If you have any problems with the coupling of the unboxing kit with your bike, please do not hesitate to contact our team.
Before installing the SpeedBox on a brand new electric bicycle, you have to ride at least 1 km before activating the SpeedBox.

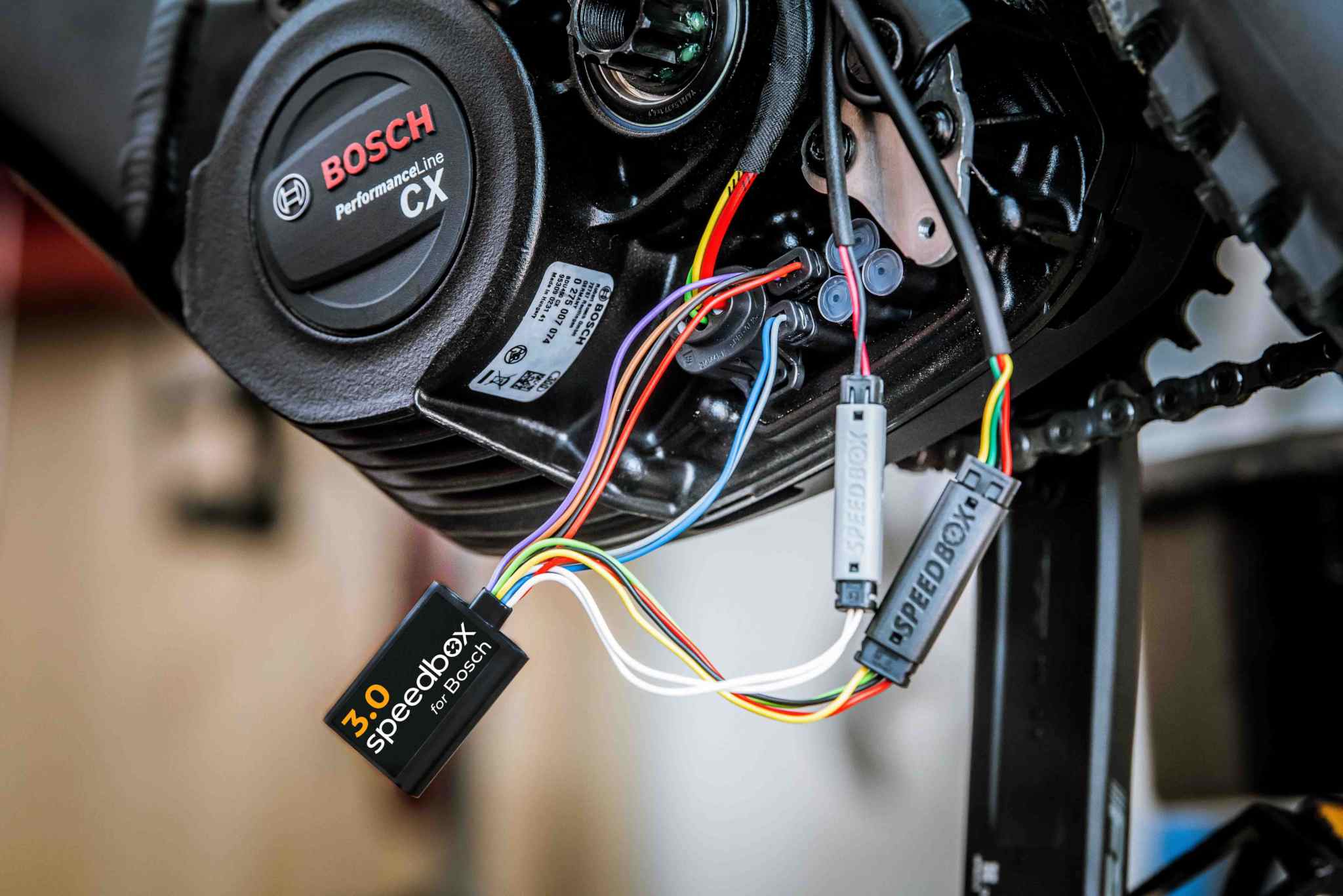

Connect the male and female connectors so that the white grooves face each other. Do not twist the connectors while plugging them in!
We warn that the use of bikes fitted with the unboxing kit may be in contradiction with the legislation in force in some countries. The manufacturer will not be held responsible for any damage caused by the use of SpeedBox products. It is forbidden to use the electric bicycles equipped with SpeedBox products on roads, bicycle paths and in public areas. It is allowed to use the electric bicycles equipped with SpeedBox products only on private property and under its own responsibility. By using the SpeedBox products, you take the risk of the loss of warranty of the electric bicycle.
We recommend that you also use other safety and protective equipment to avoid injury while riding.
Before each software update of your electric bicycle, we recommend to remove the SpeedBox:
1) Disconnect the SpeedBox from the VAE
2) Update the software
3) Reinstall the SpeedBox
SpeedBox App for SpeedBox 3.0 B.Tuning
The SpeedBox App, a mobile application designed specifically for the SpeedBox 3.0 B.Tuning kit, uses Bluetooth technology to pair your cell phone with your electric bike. Once you have downloaded the app and your phone is paired with your electric bike, you will be able to see the updated data and settings of your bike trips on your phone screen. You can save all the trips you have made and compare them with those of your friends. You can also observe the evolution of your performance. You can enjoy your time with your electric bike and view your ride data later.
The SpeedBox App allows you to:
- Handling your tuning kit
- Save and view your cycling data
- Set the maximum assistance speed
- Setting the Tuning Invisible mode
- Lock the motor
- Engine diagnostics
The SpeedBox 3.0 B.Tuning chip can be used without the SpeedBox App. However, the SpeedBox App is a perfect accessory, thanks to which you will have complete information about your performance.
Download the SpeedBox App on your cell phone before ordering the SpeedBox 3.0 B.Tuning. Try the trial version of the app, learn all the tips and tricks and check if the app works on your phone. In order to pair the SpeedBox 3.0 B.Tuning with your cell phone, it must be equipped with Bluetooth 4.0 or higher.
