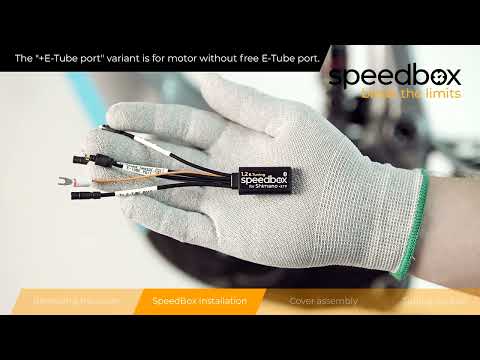

The "+E-Tube port" version is designed for electric bikes that don't have a free E-Tube port - usually bikes with one of the following components:
E5000 motor
Satellite System ON/ OFF Switch
Di2 electronic derailleur
FEATURES:
Kit activation/deactivation: SpeedBox App / LIGHT
Maximum speed: unlimited
On-screen display:
actual speed up to 23 km/h
then actual values only in app
Compatible with: SpeedBox App
This reworked tuning kit, with completely new hardware and firmware and Bluetooth technology, is designed for your electric bike with a Shimano motor.
SpeedBox 1.2 B.Tuning offers a unique connection between the electric bike and your cell phone. The chip is optimized down to the smallest detail for better performance and maximum riding pleasure. The kit removes the electric bike's speed limit and you can enjoy your ride at unlimited speed.
Thanks to your SpeedBox App you can view all the details of your activities on your mobile and save them. After pairing with the SpeedBox App, you'll see the ride data on the cell phone screen and you can set the maximum assistance speed to whatever suits you. Track and save all your ride settings on your phone screen. Anytime, anywhere.

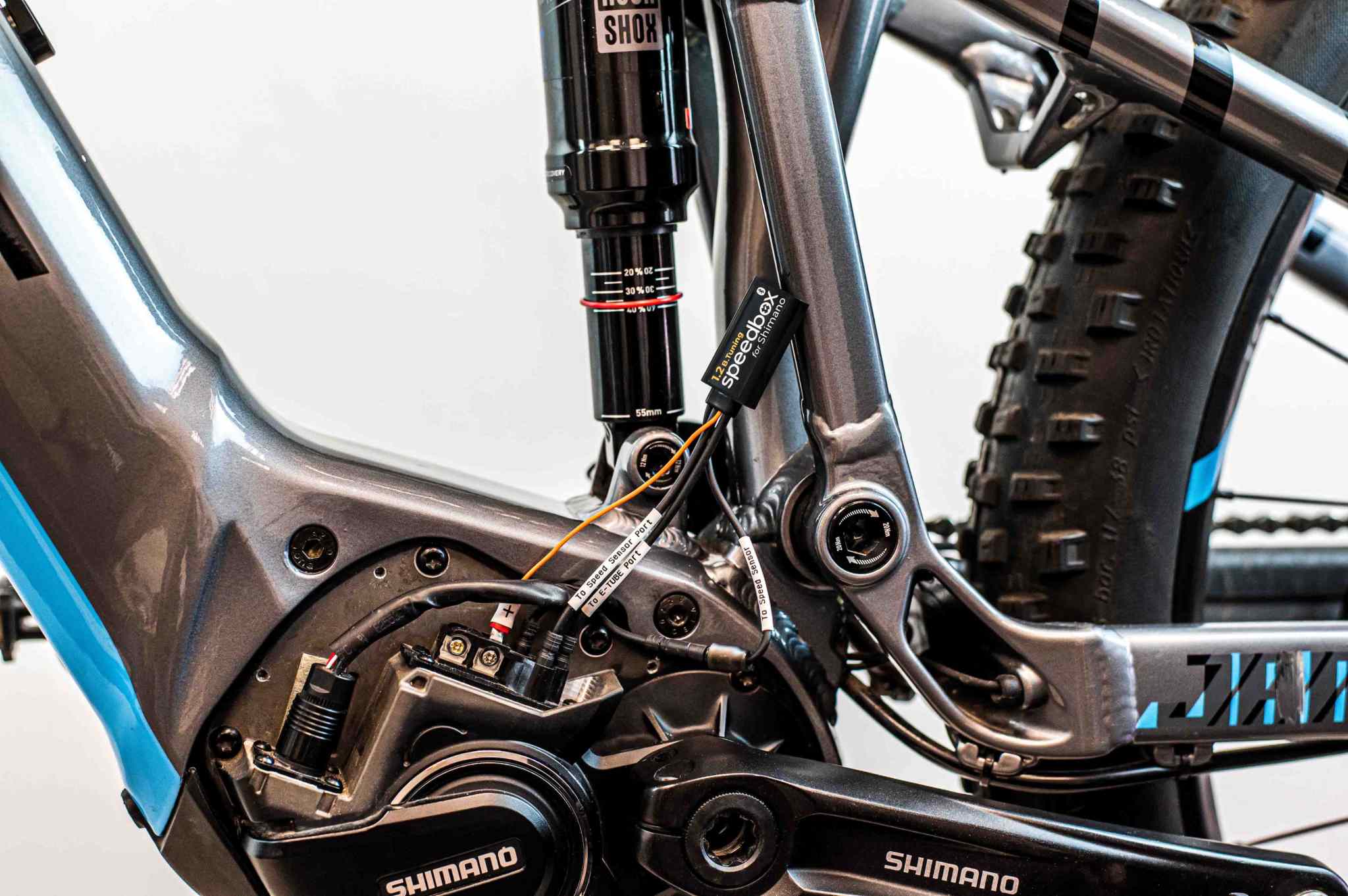

Compared with previous SpeedBoxes for Shimano, this product also plugs into the E-Tube port. It is therefore essential that the electric bike motor on which you want to install the new version of the SpeedBox has a free E-Tube Port. Without a free E-Tube Port, the SpeedBox cannot be installed.
The E-Tube Port is usually not free when the bike is fitted with an automatic Di2 derailleur or when the start button is integrated into the frame - this is the Satellite System ON/OFF Switch (EW-SW100, EW-SW300).
How does SpeedBox B.Tuning work?
This unboxing kit is also characterized by its ease of use. You can activate the SpeedBox 1.2 B.Tuning in your mobile app or on the console by pressing the LIGHT button.
When the lights are off, you can drive at unlimited speed. You can easily deactivate SpeedBox by turning on the lights. A new feature of this version is the ability to activate the double-click function in the application (only for screens with the LIGHT button - E5003, E5000, E6010, E6100). By activating this function, the lights become independent of the SpeedBox. Double-clicking the LIGHT button causes the lights to flash and the SpeedBox to switch on. A further double-click deactivates the setting and the electric bike will operate in the same way as before. You can set the maximum assistance speed in the app.
