The tuning kit for electric bikes with the latest 4th generation Bosch motors and with Smart System.
Not compatible with electric bikes fitted with a magnet on the valve (Bosch Rim Magnet).

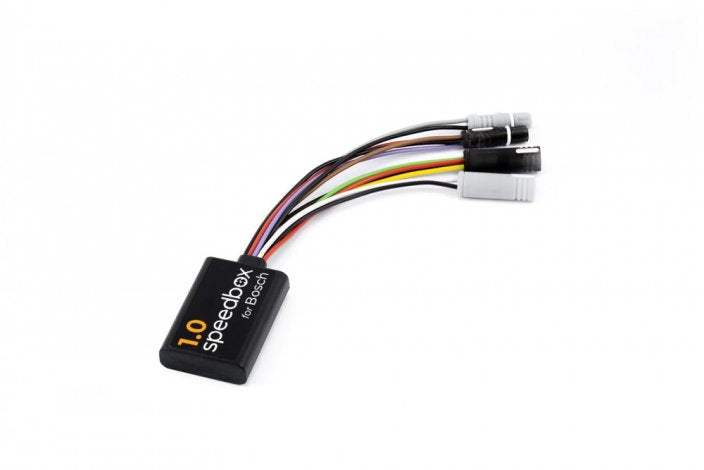

The SpeedBox 1.0 allows you to remove the speed limiter from the electric bike. When using the kit, the correct speed is shown on the display up to 22.2 km/h. Once 22.2 km/h are exceeded, the actual speed is shown in the last two digits on the display.
- 22.3 corresponds to a speed of 23 km/h
- 23.1 corresponds to a speed of 31 km/h
If you prefer to see the actual speed in the SpeedBox app while driving, we recommend you to buy the SpeedBox 1.0 B.Tuning for Bosch. You can connect the SpeedBox 1.0 B.Tuning for Bosch to our SpeedBox App.
How does the SpeedBox 1.0 work?
To correctly activate all functions of the SpeedBox, it is necessary, after turning on the electric bike for the first time, to enter the menu and display the circumference of the wheel of your electric bike.
To activate the SpeedBox 1.0, briefly switch on the WALK function on the control box of the electric bicycle (hold the "-" button). The value 9,9 km / h (6,2 mph) will briefly appear on the display of your electric bicycle and from this moment on you can ride at an unlimited speed.
The SpeedBox1.0 can be deactivated in the same way - the WALK function must be switched on again (hold the "-" button). The 2.5 km/h (1.6 mph) will be shown on the display and the speed limit of 25 km/h will be reactivated. The electric bicycle will then operate in the same manner as before the kit was installed.
We have also thought about the bikes that have neither the WALK function available nor active. In these cases, you can activate/deactivate the SpeedBox by switching twice between two assistance modes, in the following order: + - + -
We use the original connectors for the SpeedBoxes. Thanks to this, the installation of the chip is very simple and you will easily succeed. We have also prepared detailed instructions and videos, so that you can install the unboxing kit yourself. Uninstalling the unboxing kit is as easy as installing it. If you have any problems with the coupling of the unboxing kit with your bike, please do not hesitate to contact our team.
Before installing the SpeedBox on a brand new electric bicycle, you have to ride at least 1 km before activating the SpeedBox.

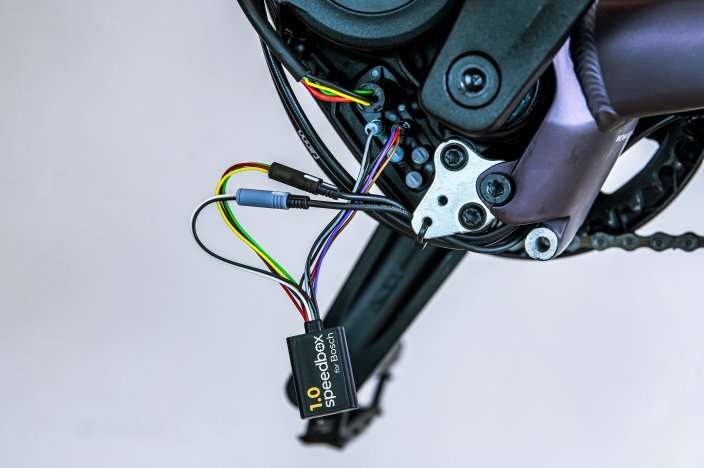

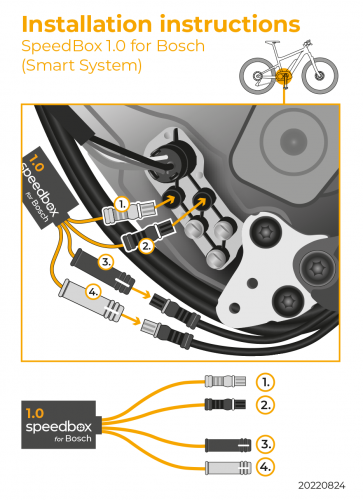

Connect the male and female connectors so that the white grooves face each other. Do not twist the connectors while plugging them in!
We warn that the use of bikes fitted with the unboxing kit may be in contradiction with the legislation in force in some countries. The manufacturer will not be held responsible for any damage caused by the use of SpeedBox products. It is forbidden to use the electric bicycles equipped with SpeedBox products on roads, bicycle paths and in public areas. It is allowed to use the electric bicycles equipped with SpeedBox products only on private property and under its own responsibility. By using the SpeedBox products, you take the risk of the loss of warranty of the electric bicycle.
We recommend that you also use other safety and protective equipment to avoid injury while riding.
Before each software update of your electric bicycle, we recommend to remove the SpeedBox:
1) Disconnect the SpeedBox from the VAE
2) Update the software
3) Reinstall the SpeedBox
